Please see our presentation below that highlights the features of our CFM56-3 Engine Stand.

Specifications

Handles the CFM56-5,A B&C Series engines

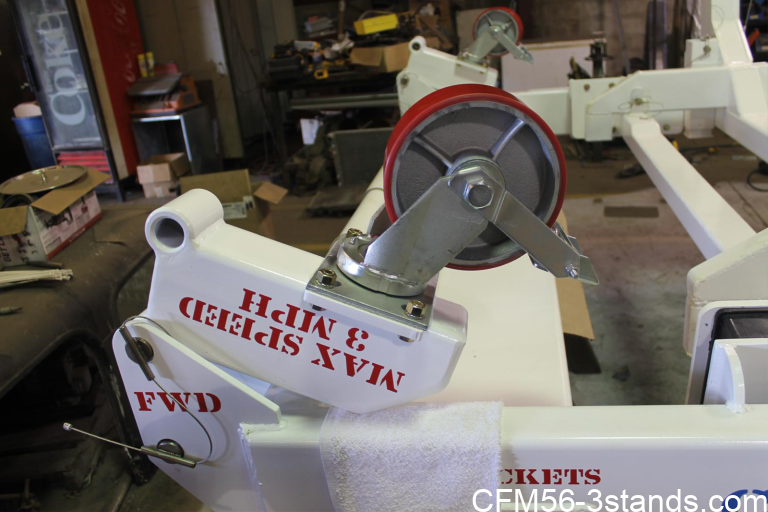

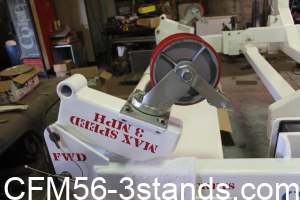

  • Retractable casters included, polyurethane, 5000 pound rated each, full swivel.
  • Lightweight
  • Equipped to accept tow bars at any time, tow bars can be ordered with stand.

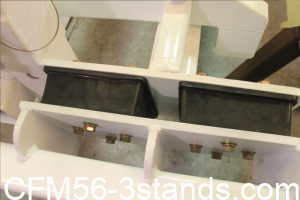

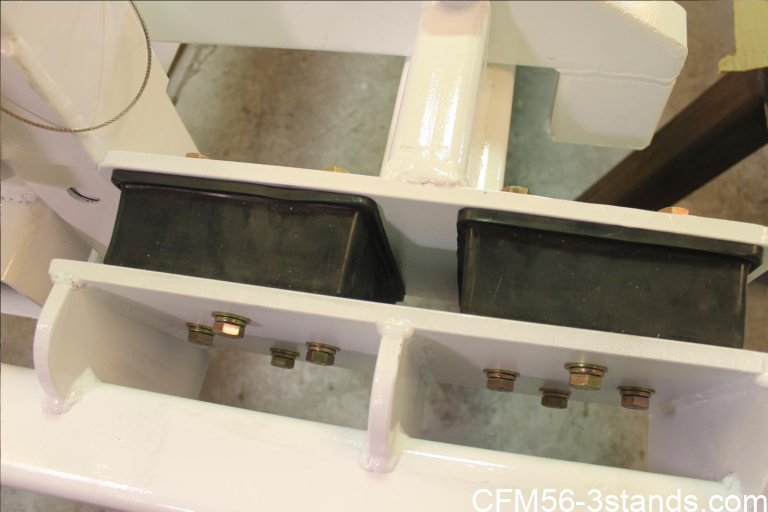

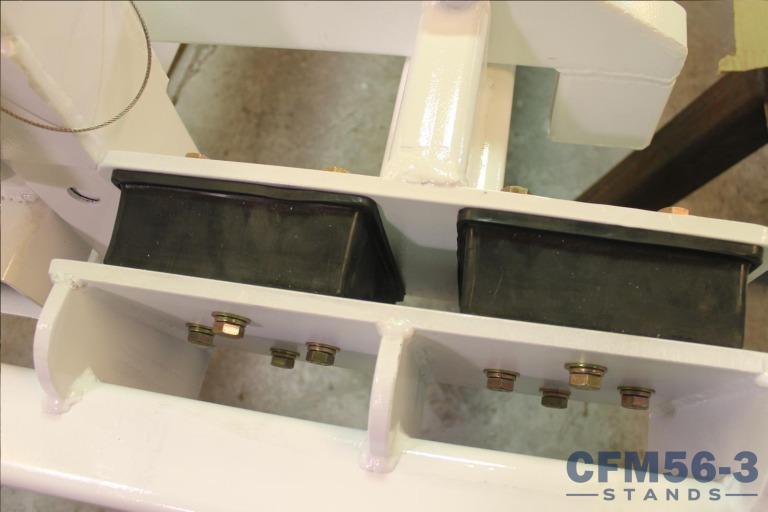

  • Equipped with proper isolation blocks, rubber compound, TUNED TO 7 10 Hz.
  • Transportation tie-downs.
  • Designed to fit through a narrow body cargo door while equipped with an engine (casters in the upright position).

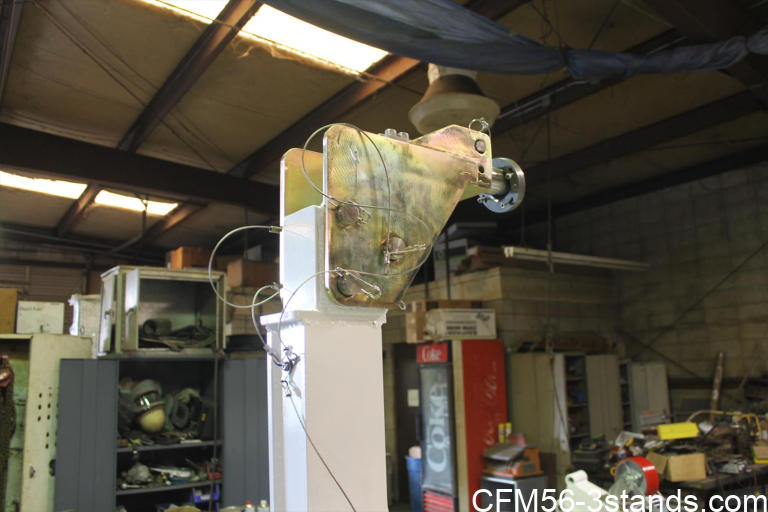

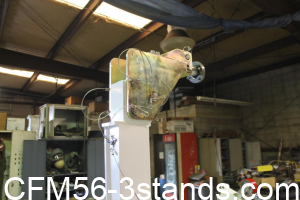

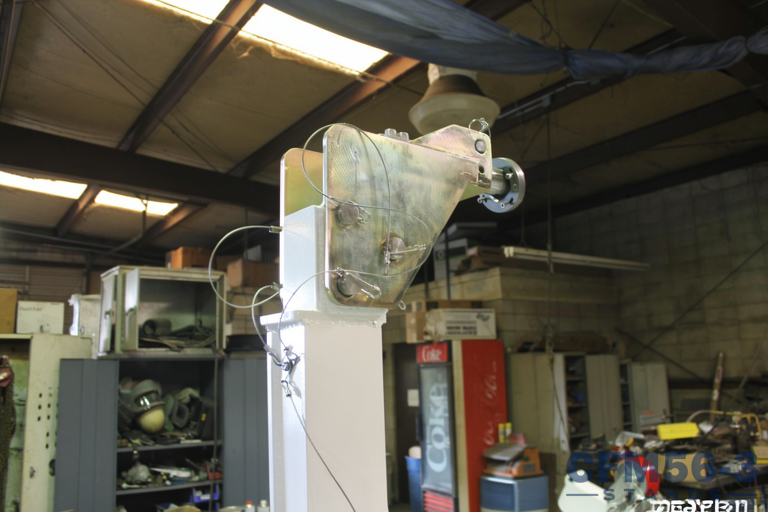

  • Mounts and adapters included making the stand “bootstrap ready”.
  • Economically priced.
  • Dupont skydrol resistant Imron primer and top coat > Schedule 8 or greater stainless and anodized

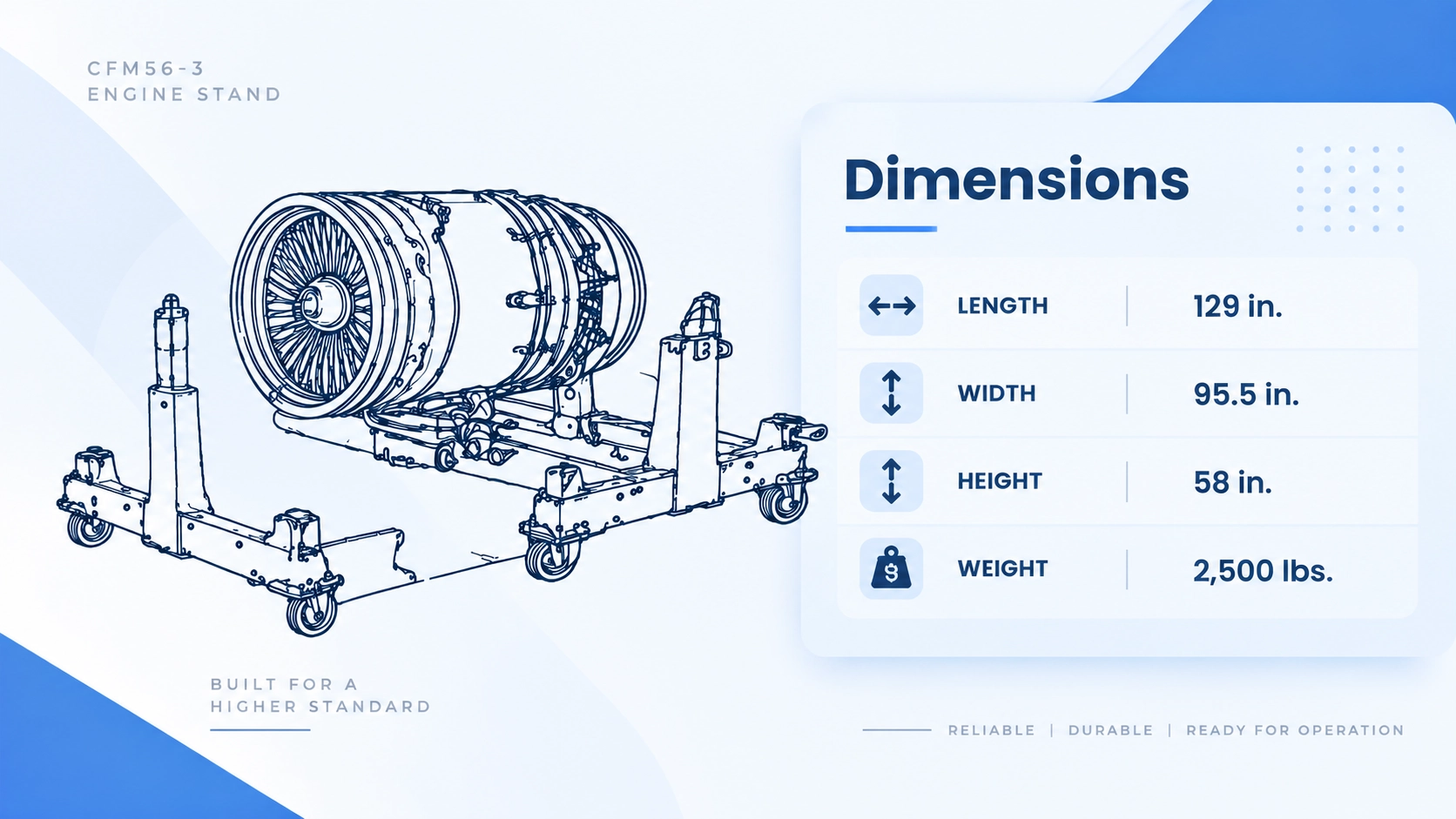

    • Dimensions:

  • Length: 129 in.
  • Width: 95.5 in.
  • Height: 58 in
  • WEIGHT 2500 LBS.

    • Using state of the art engineering and design our CFM56-35 Stand has earned a reputation as one the best designed and versatile CFM56-3  It has been field tested and proven to be a very durable and reliable engine transportation stand.

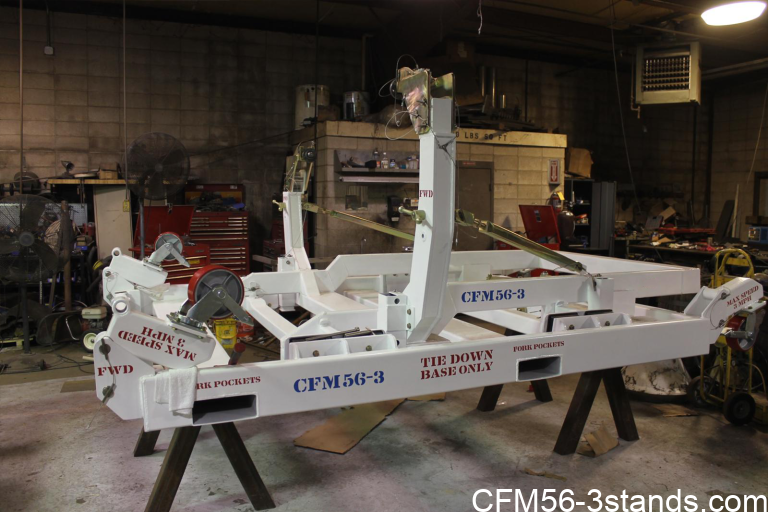

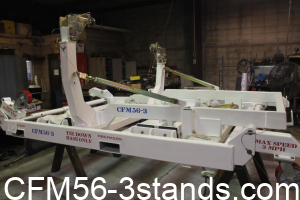

    The stand is flux welded using either A500 or A36 carbon structural steel components.  All pins and related hardware are precision CNC machined using either 4130 or 17-4 stainless steel or 7075-T6 aluminum.  All stands are painted using epoxy based paint per customer requirements. Customized colors are available at no extra charge.

    Each stand is load tested per customer requirements utilizing NIST certified gauges to assure each stand meets quality standards prior to shipment.  Additionally, dye penetrant or mag particle inspections are performed prior to and following load testing.

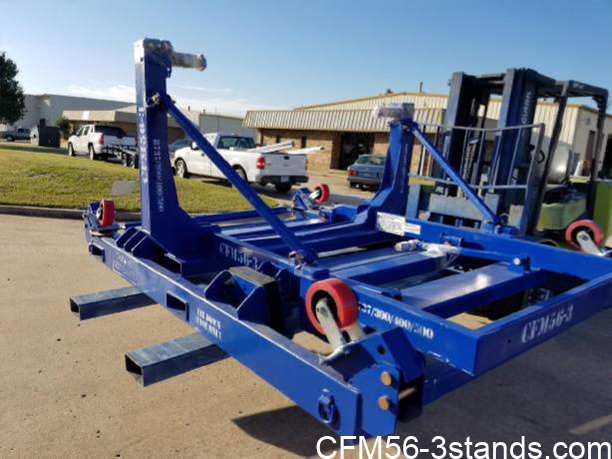

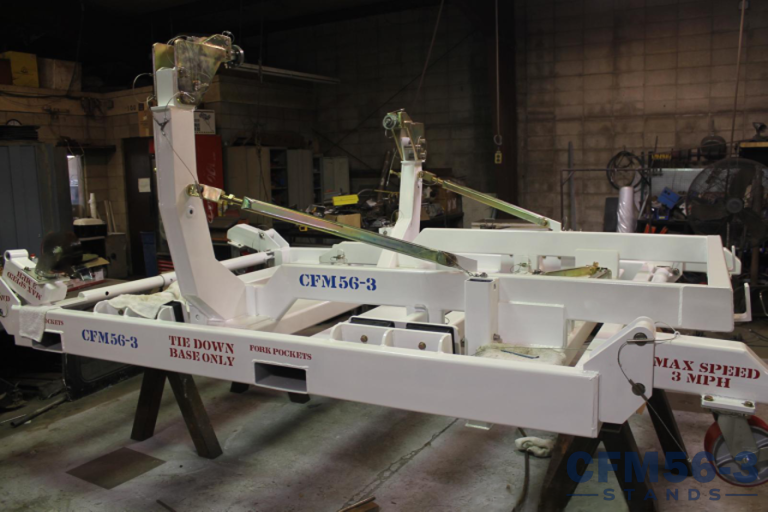

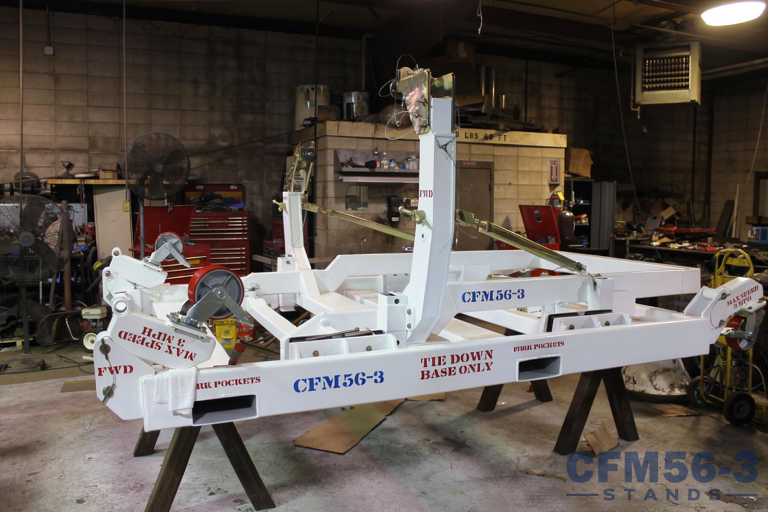

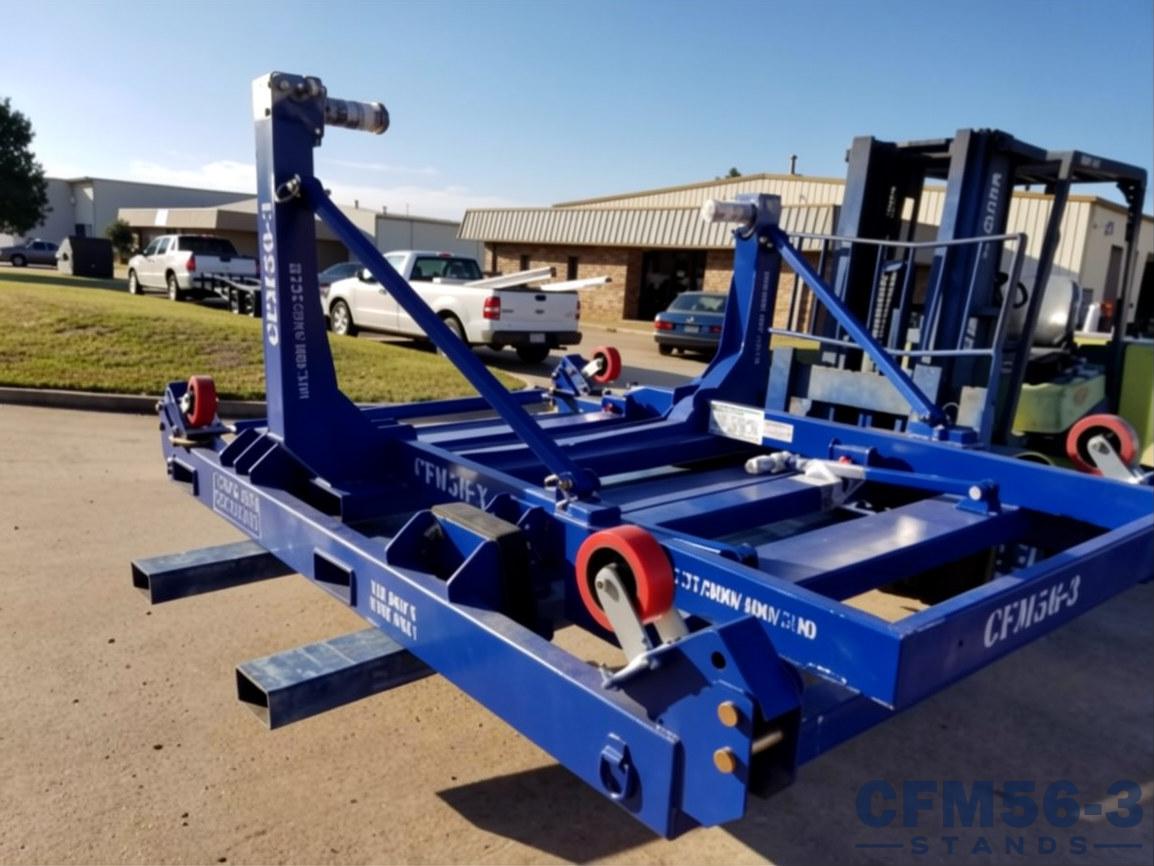

    Versatile, bootstrap capable.

    Swipe right to see more Images

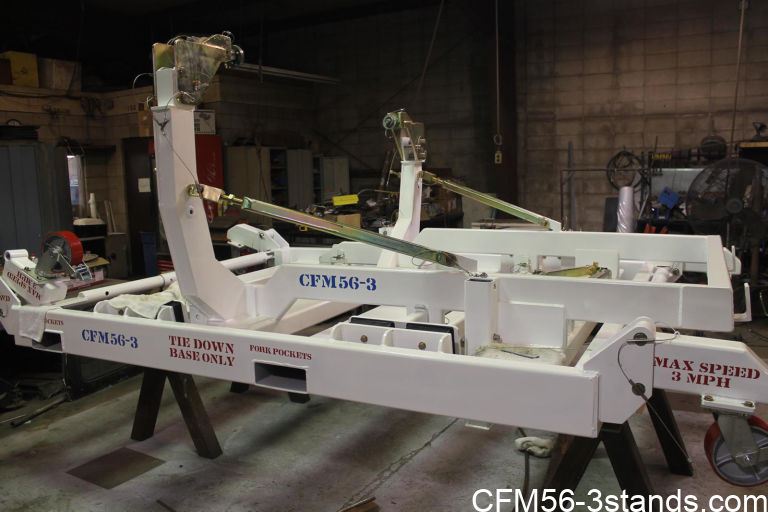

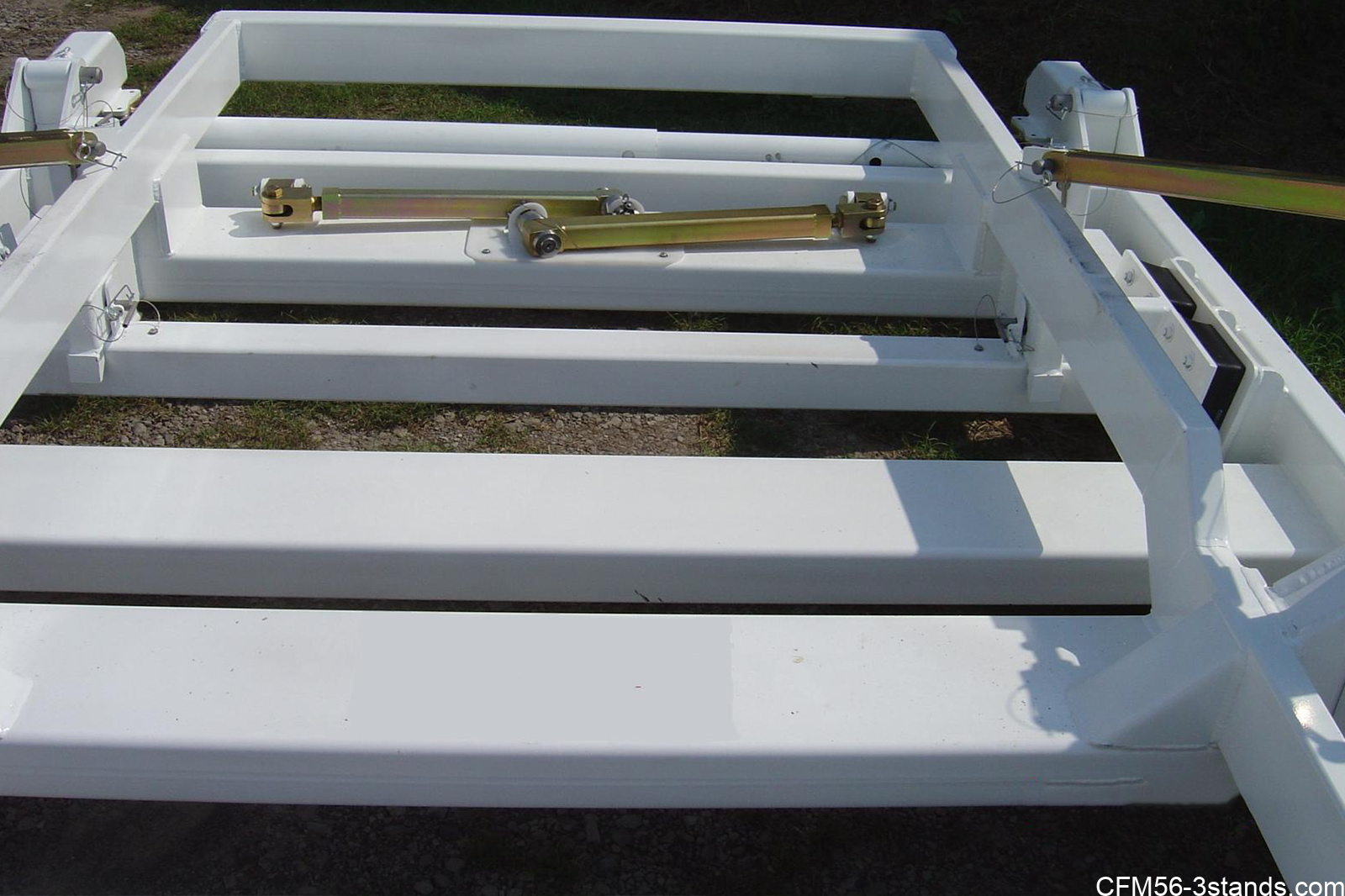

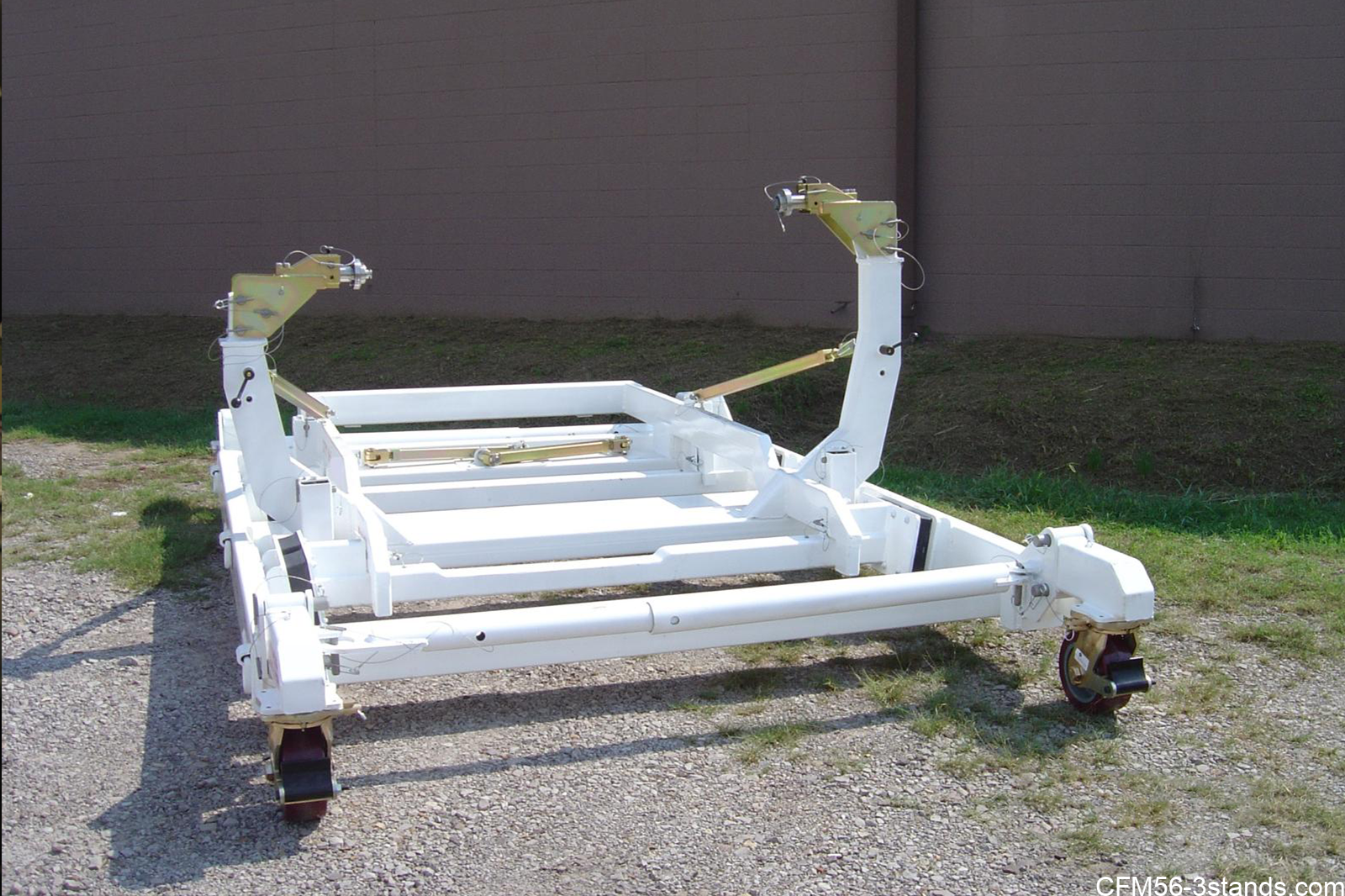

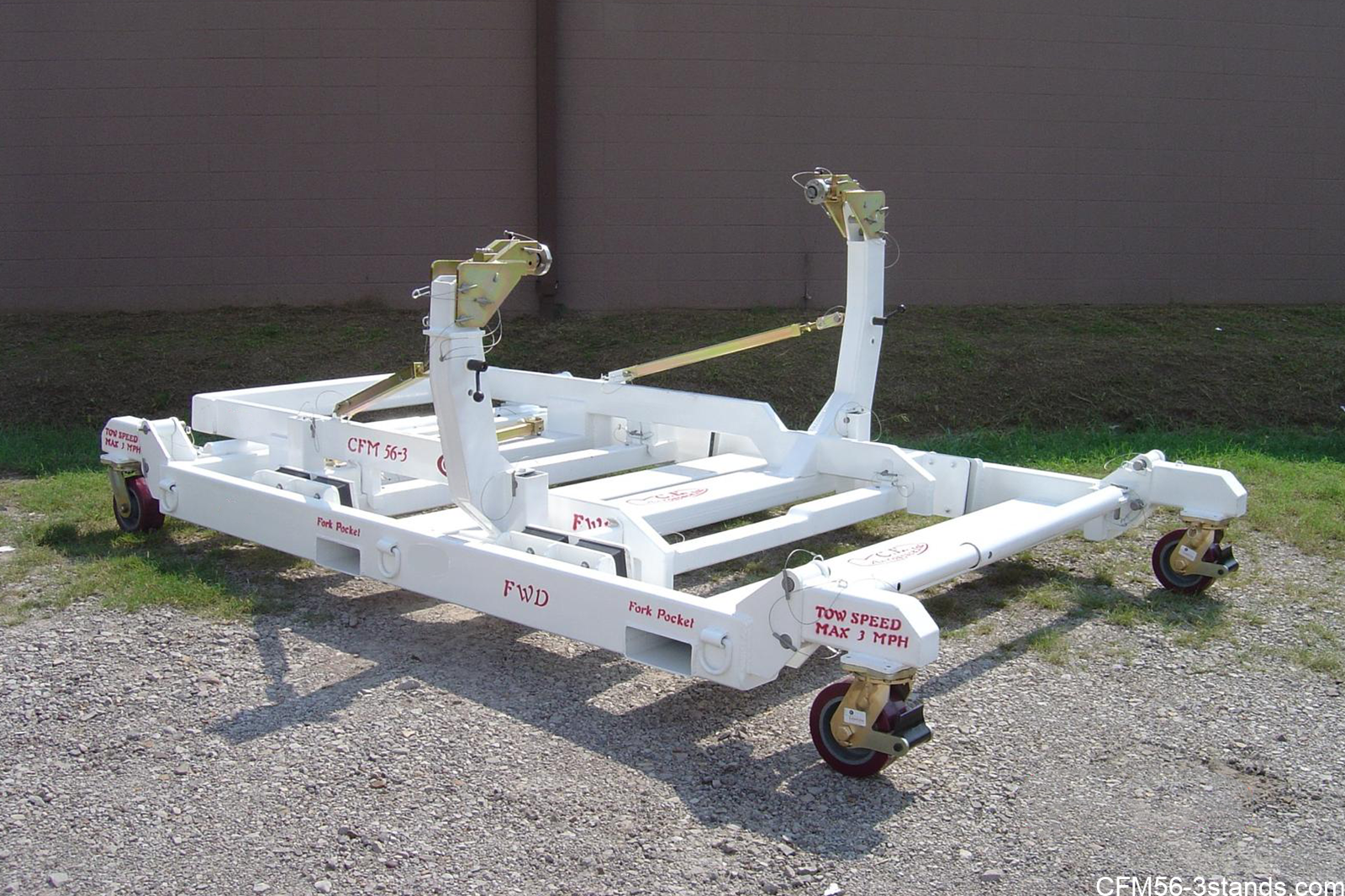

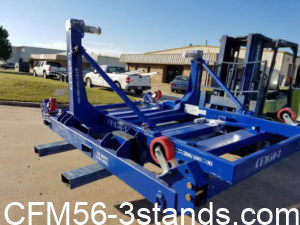

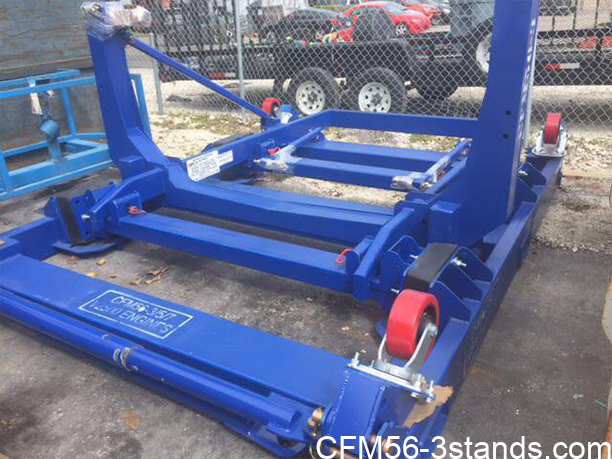

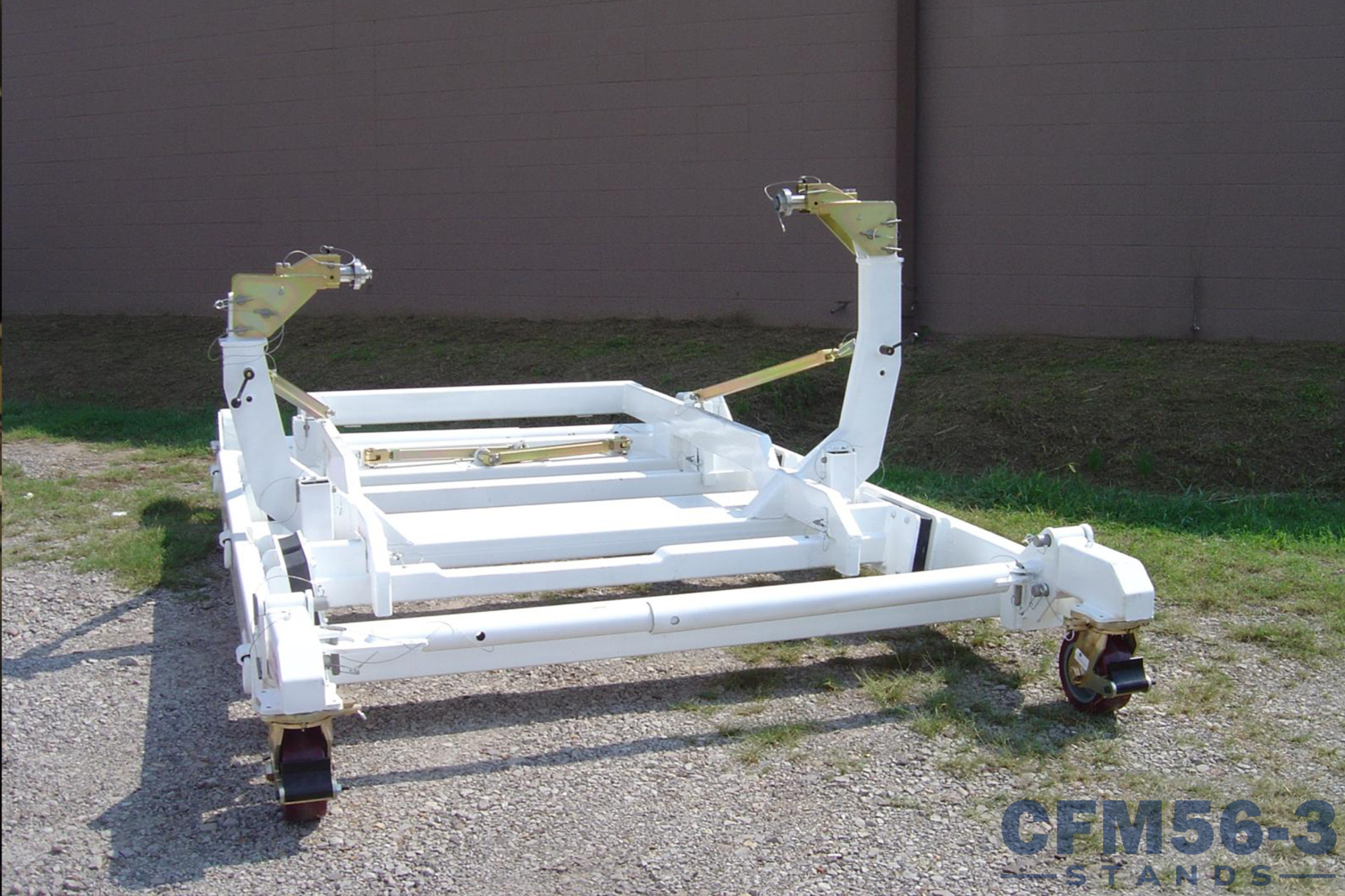

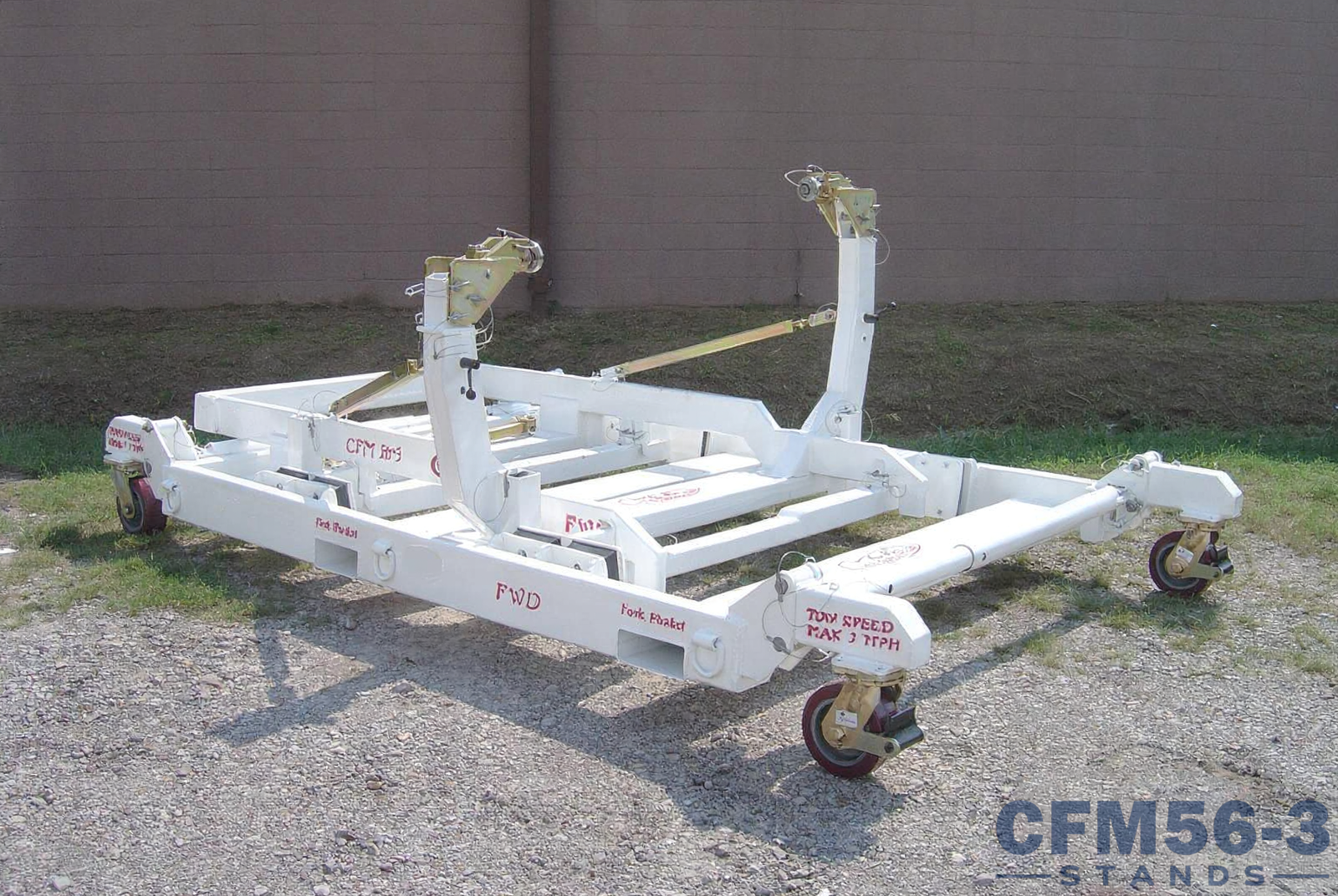

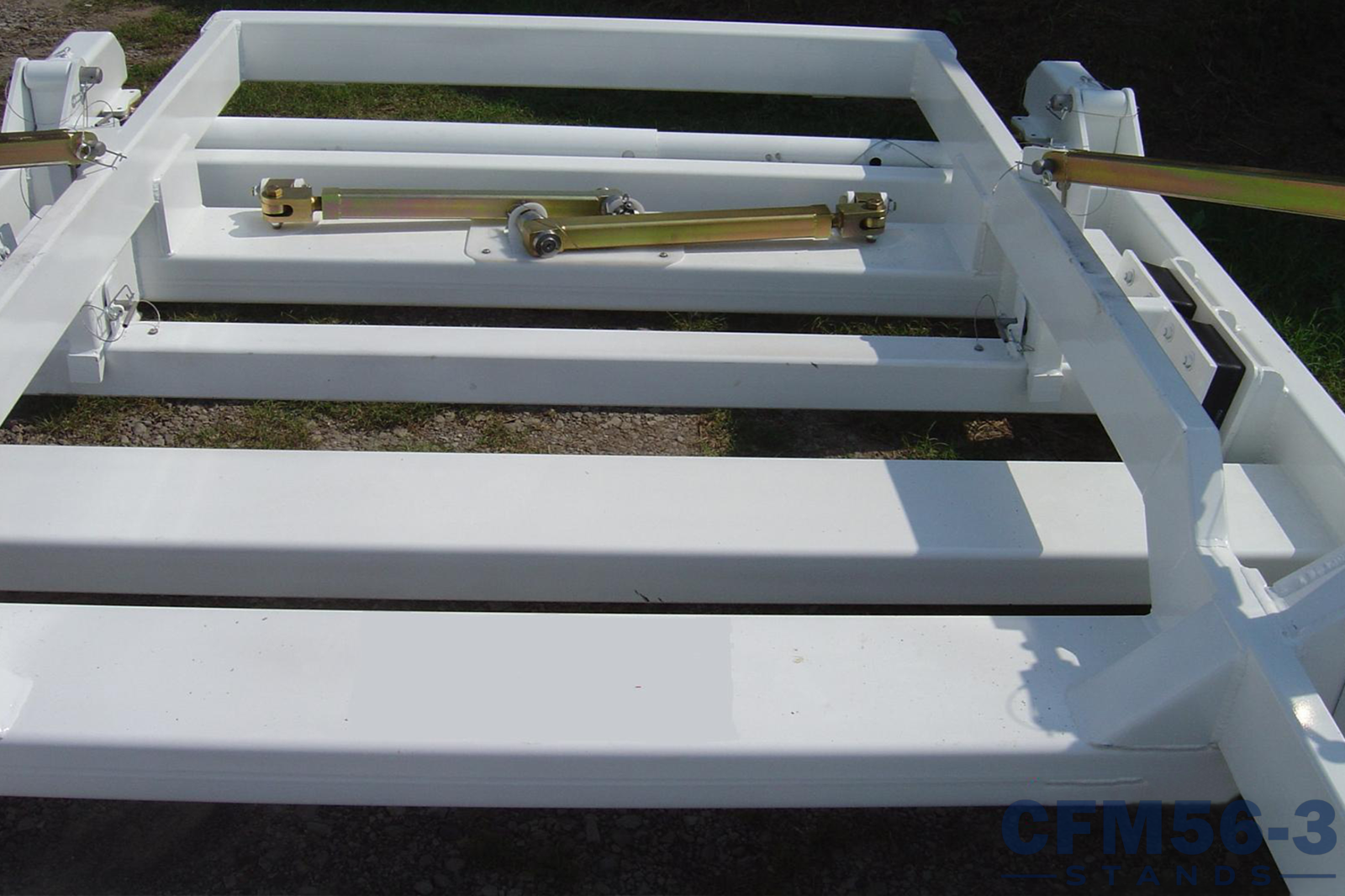

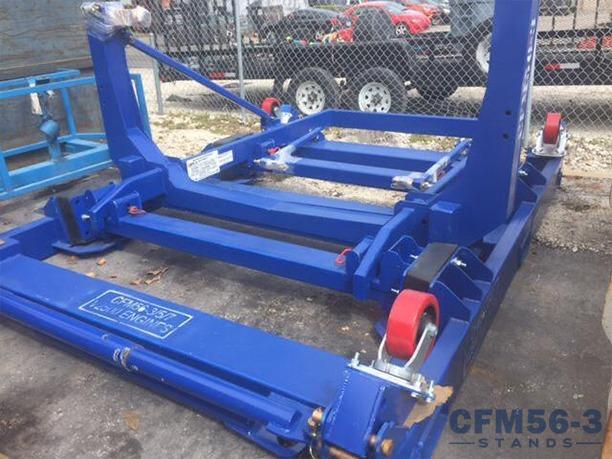

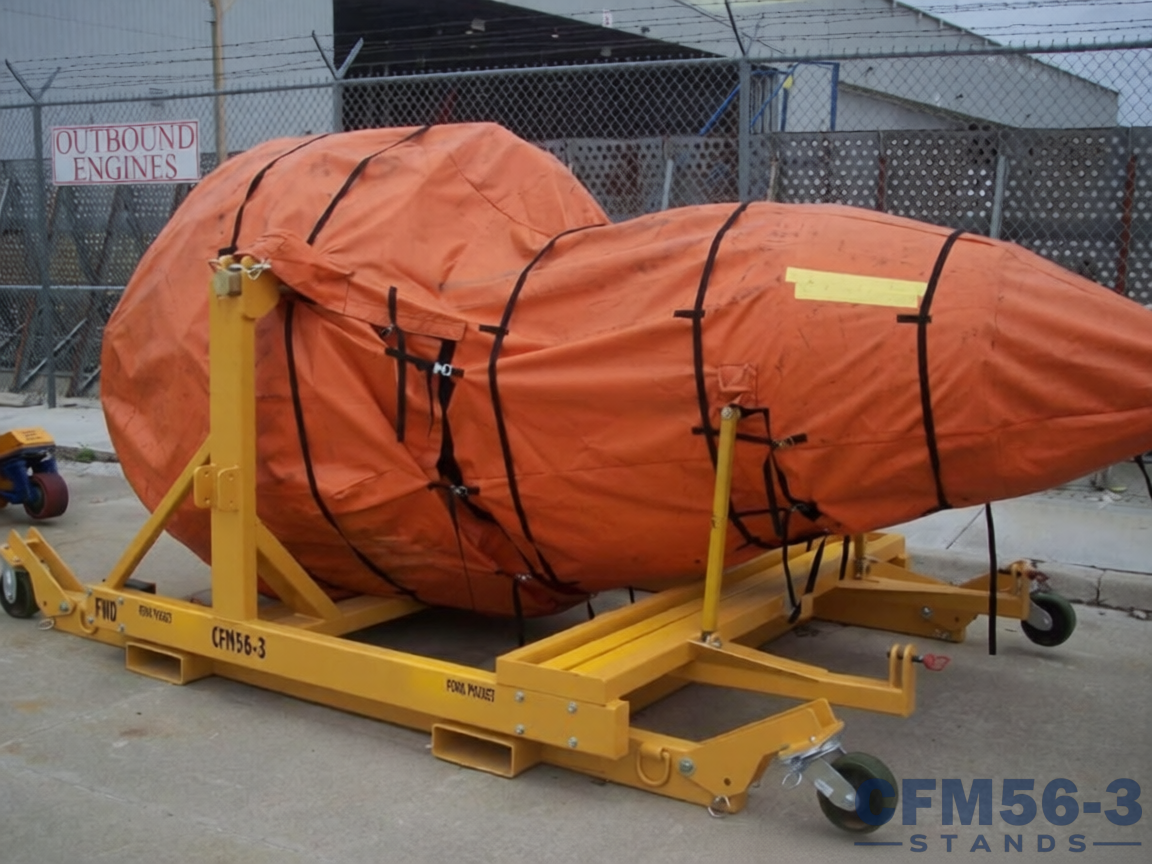

    Lightweight one piece static design

    Swipe right to see more Images

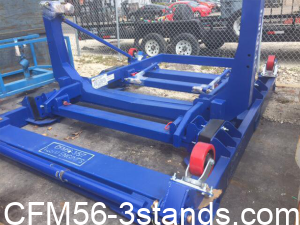

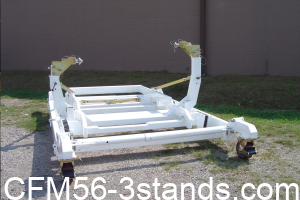

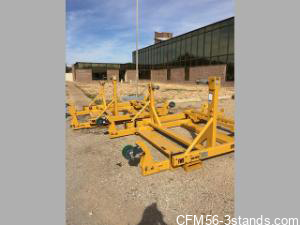

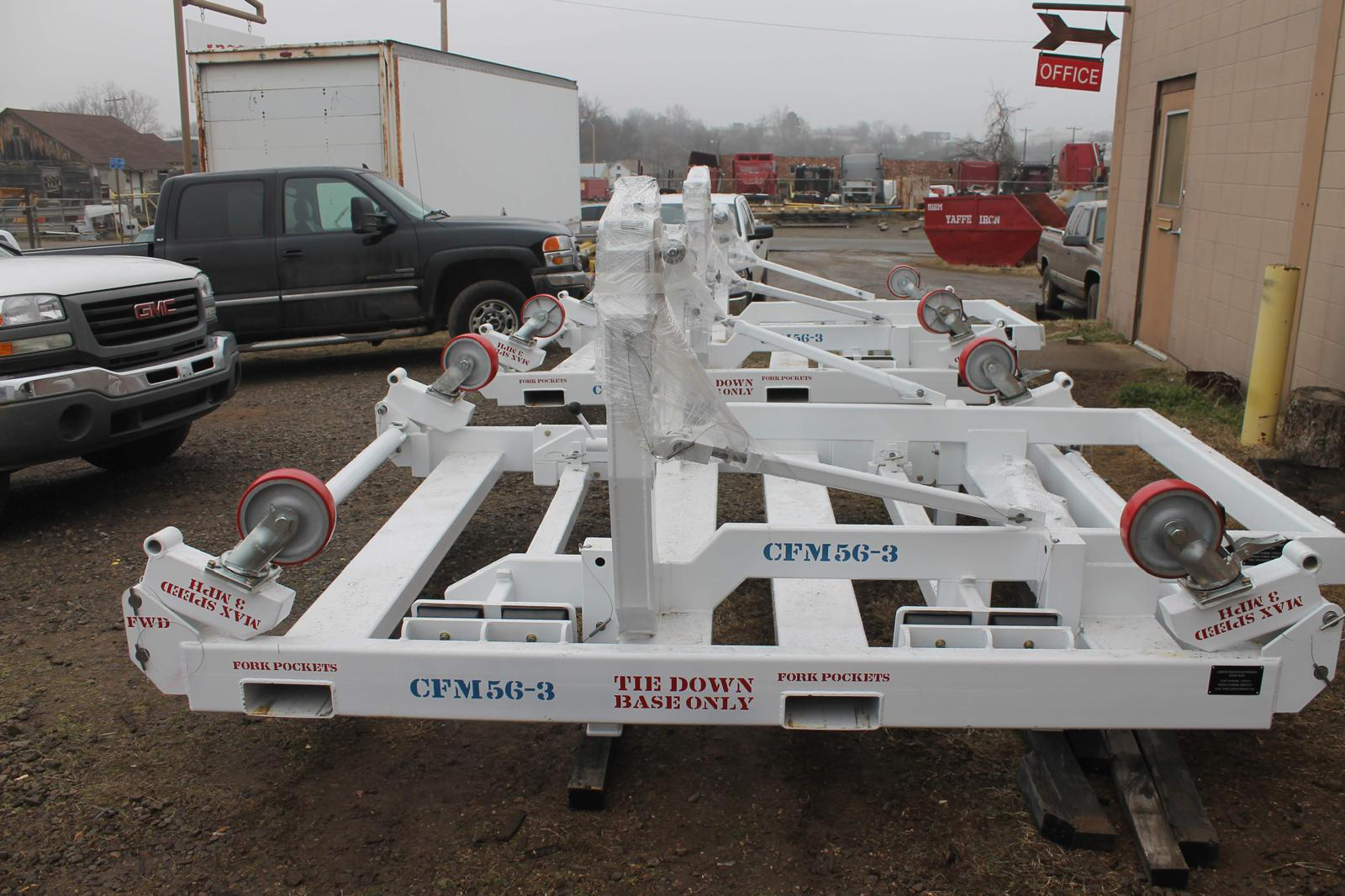

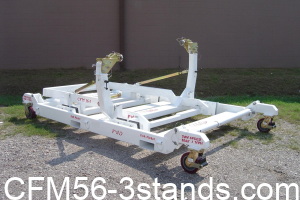

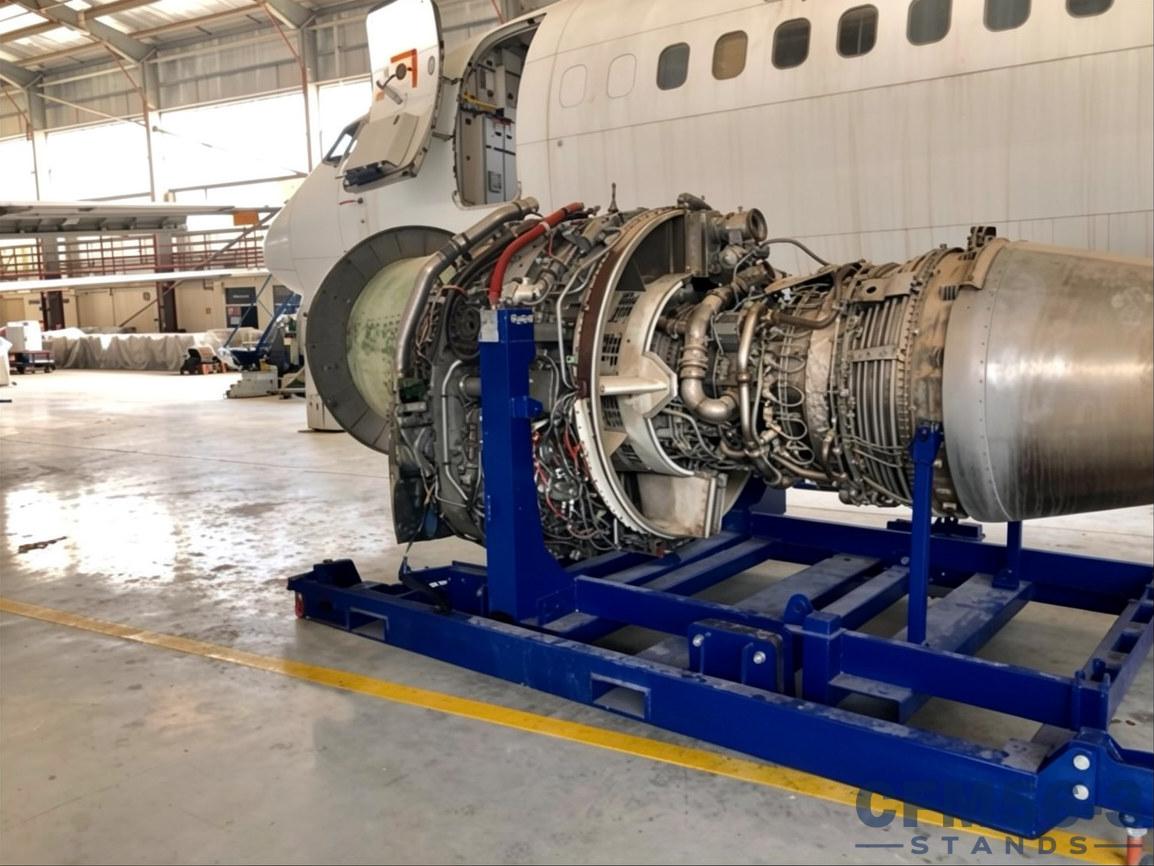

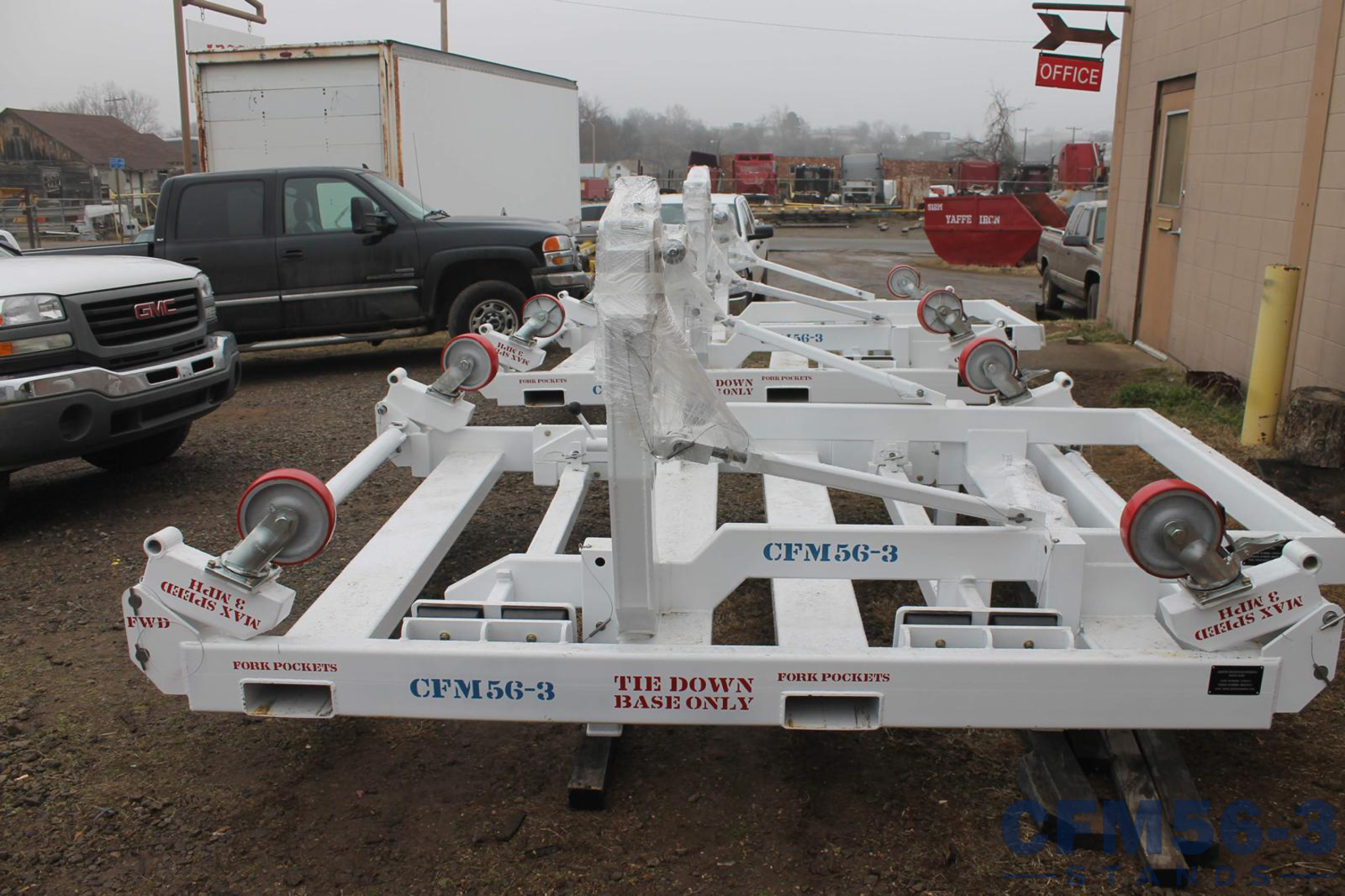

    Used Stand

    Swipe right to see more Images

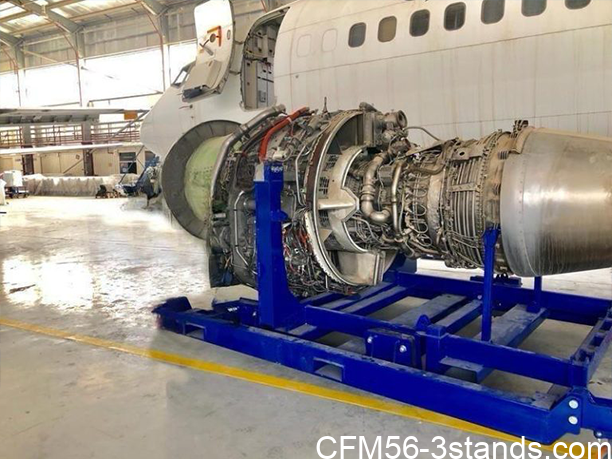

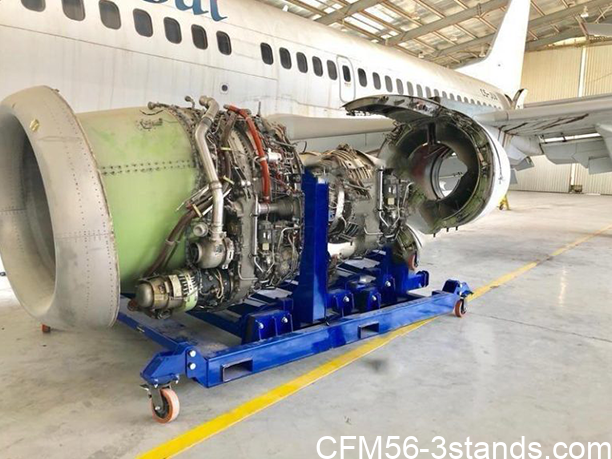

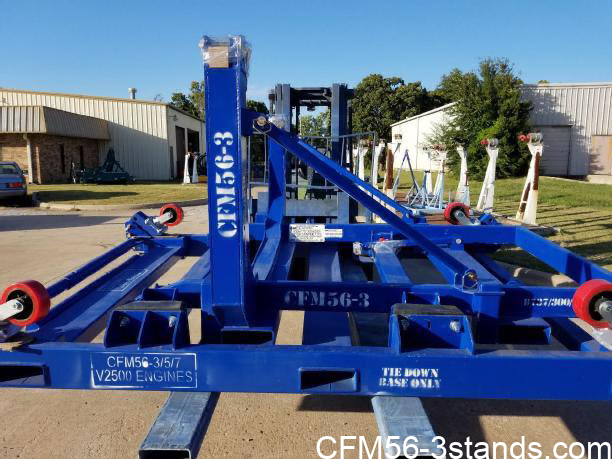

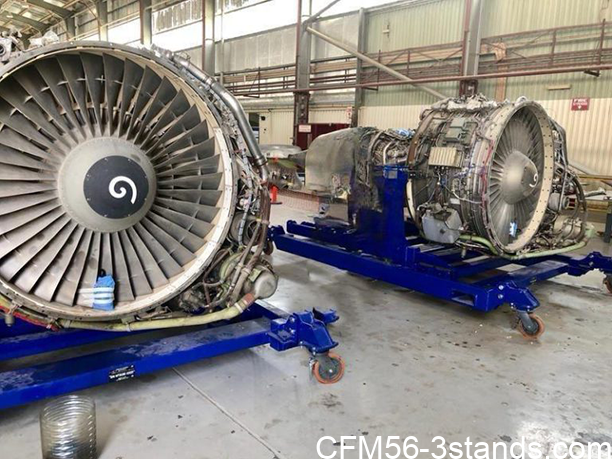

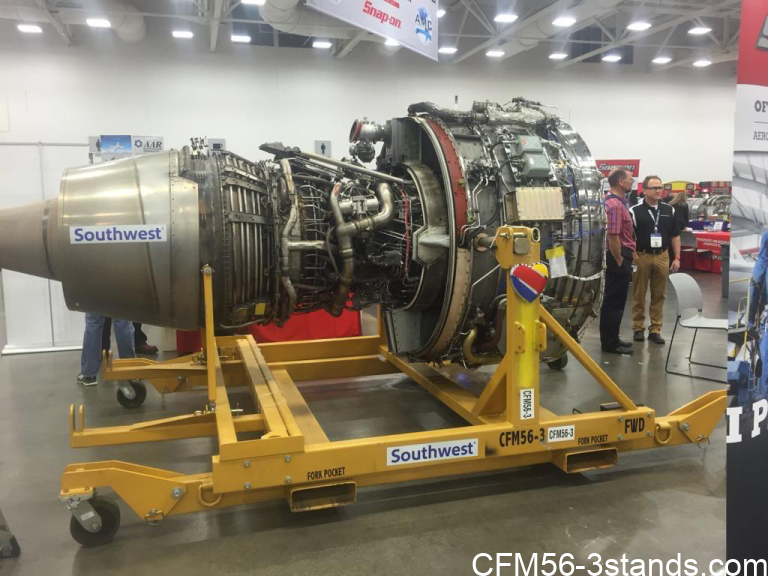

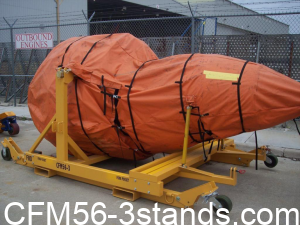

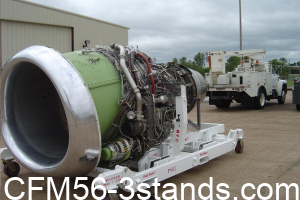

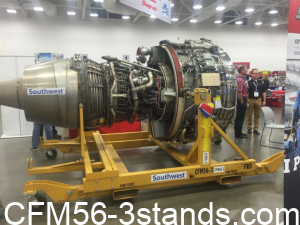

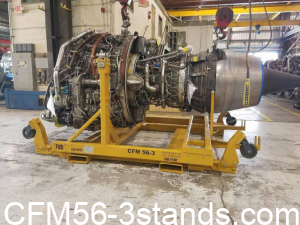

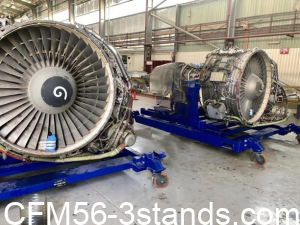

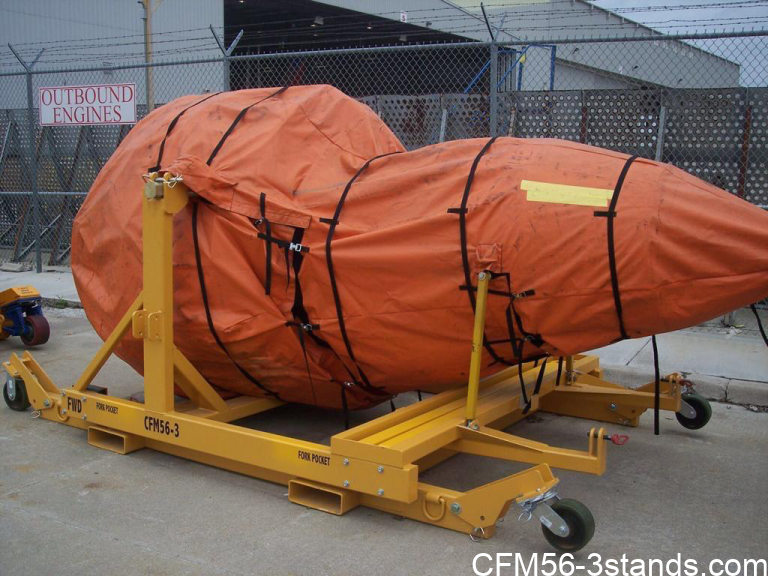

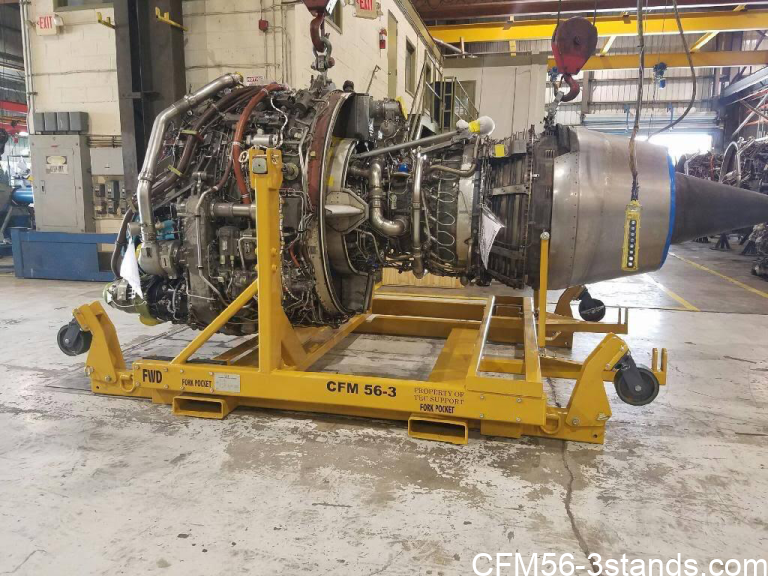

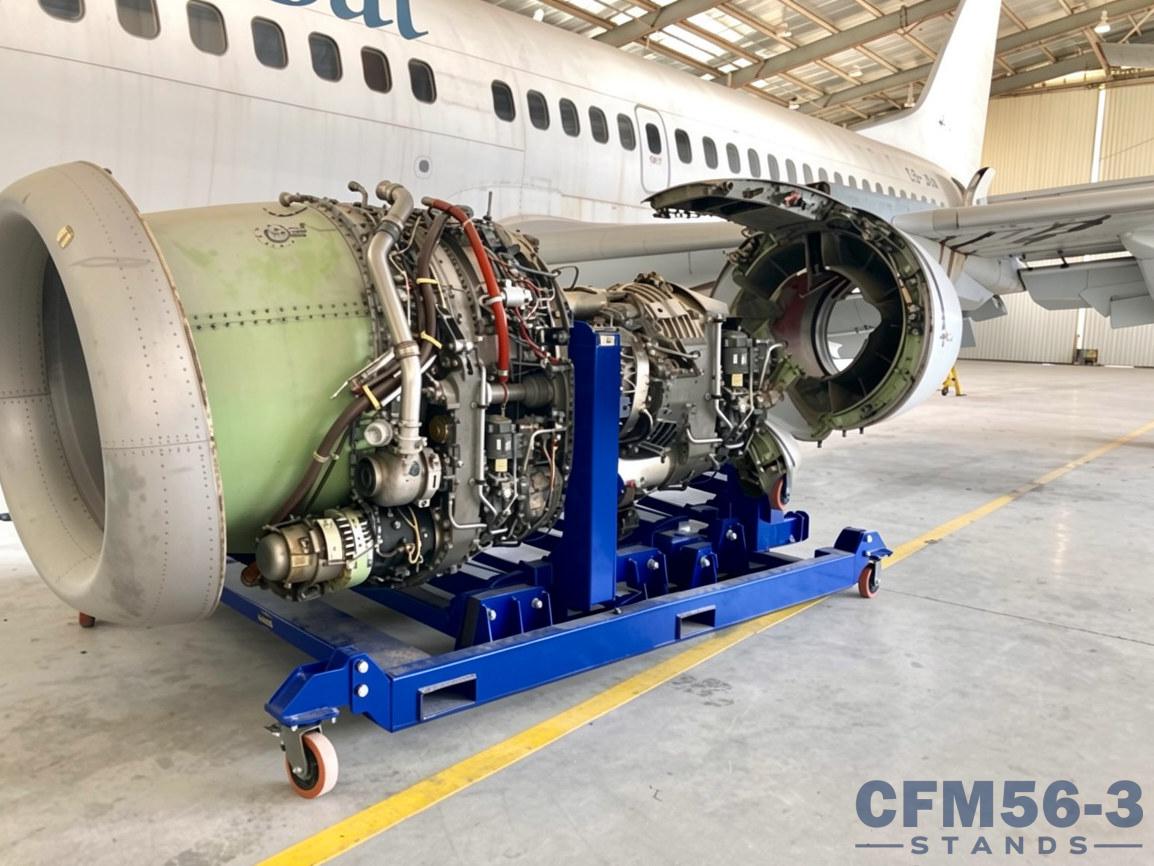

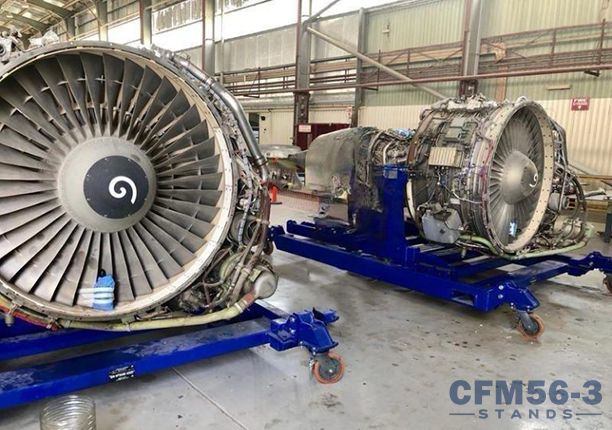

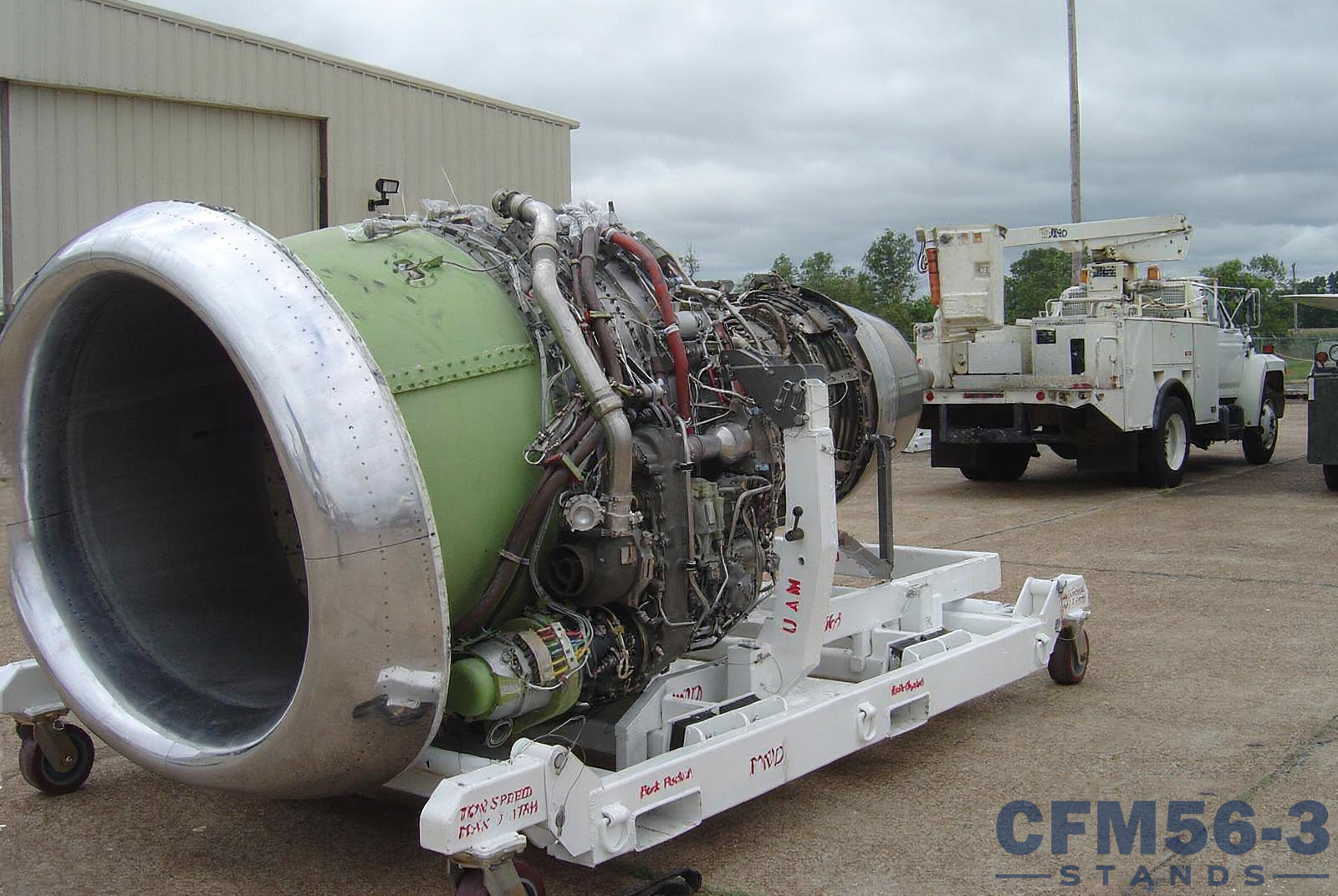

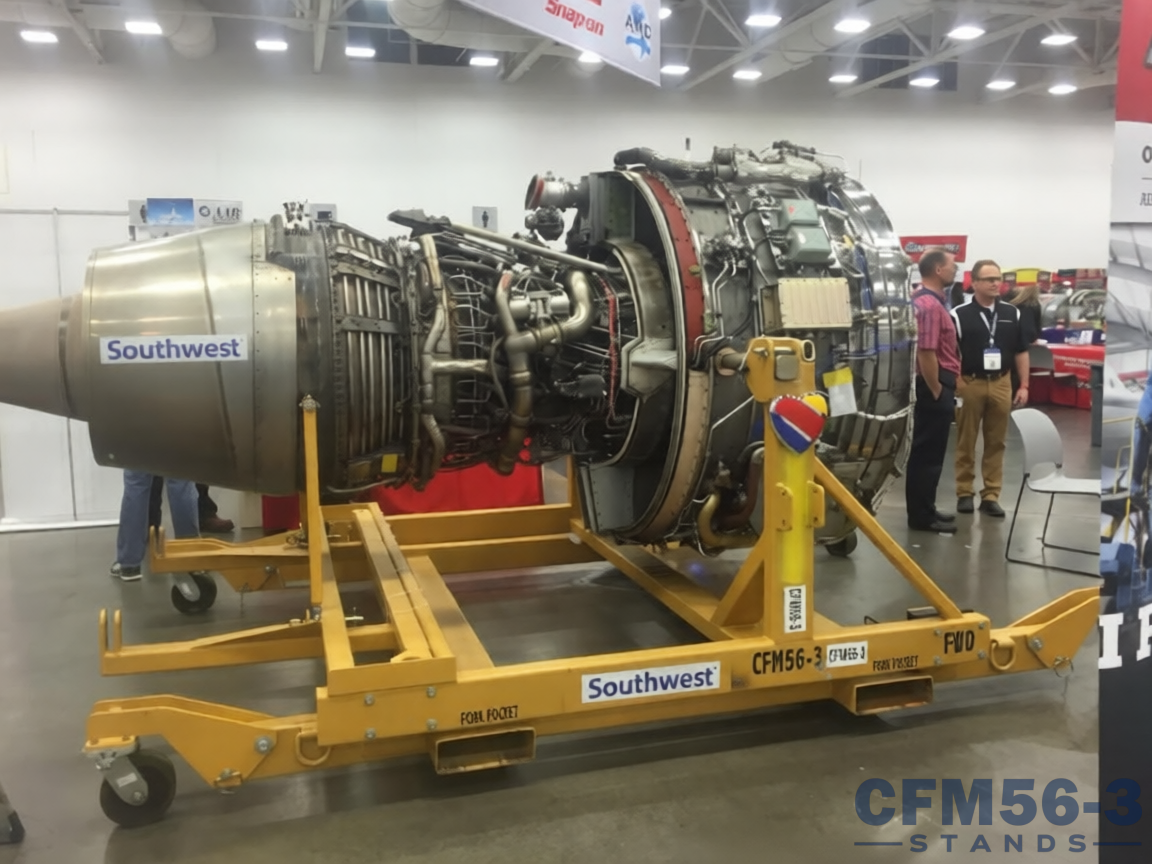

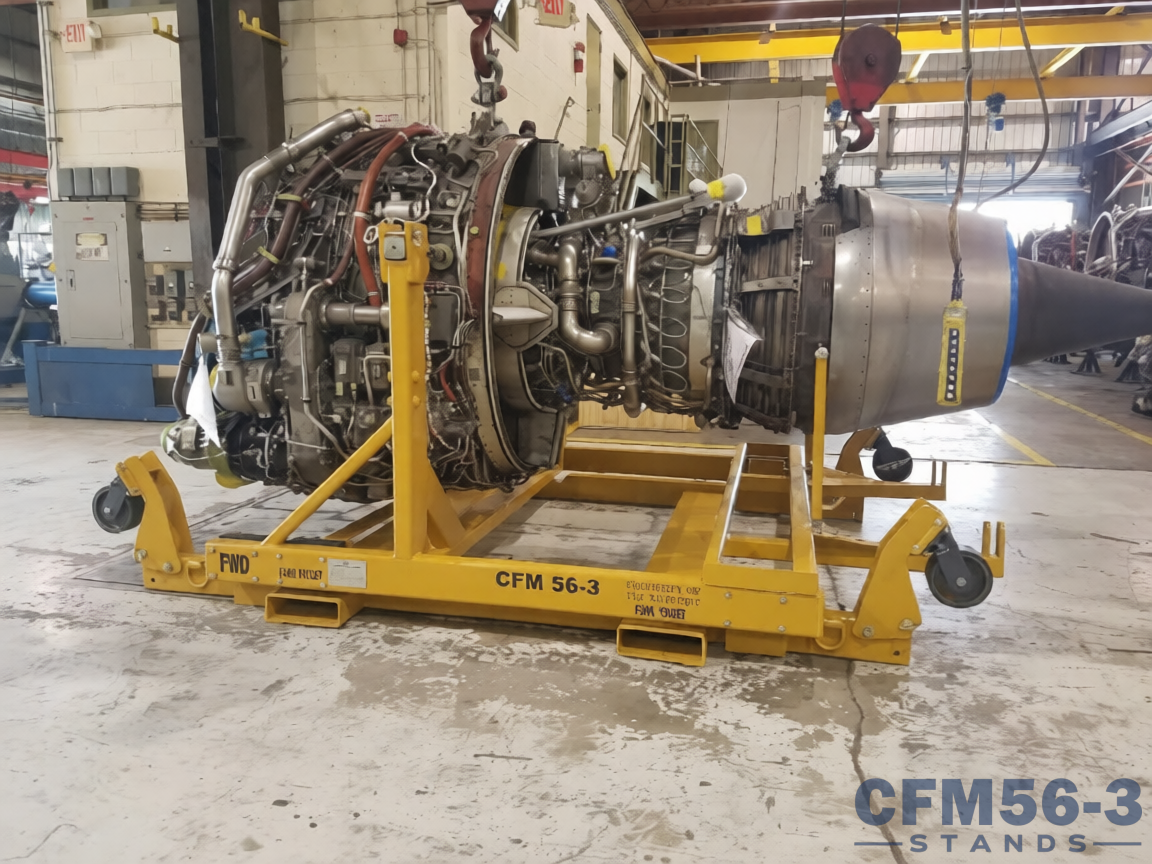

    CFM56-3 Engine Stands

    Swipe right to see more Images

    OEM Replacement Parts/ Refurbished and Inventory.

    We Offer OEM and Replacement Parts for all make and models of Stands.

    • We Sell OEM ISOLATORS
    • We Sell OEM Casters
